DICOM Network Analyzer

DICOM Network Analyzer
Name: DICOM Network Analyzer
Version: 5.2.1
Release Date: August 2021
License: LGPL

The DICOM Network Analyzer allows you to quickly and easily capture DICOM TCP/IP packages from the network. It automatically gives you an overview of the DICOM sessions and messages within each session. Deep inspection of all network messages down to PDU level and message validation. Capable of saving capture files and extracting DICOM files from the captured data. Easy to use and set-up.

Key Features
Capture DICOM TCP/IP packages from the network
Open/Save captured data as *.cap files that are compatible with other network capturing applications
Association overview and selection
Message overview within each association
Association details
Extract DICOM data from capture files and save it as *.dcm files
DICOM Data validation and reporting in XML/HTML

The application is easy to use but also provides powerfull features to the more advanced user. The application is easy to set-up and less complicated than applications like Ethereal. That is making it the perfect solutions for service engineers that need to provide support in production environments.
The advanced features make the tool also ideal for developers and test engineers that want to know exactly what data is being send over the line and get a quick validation report on the send data.

System Requirements
Microsoft Windows XP, Windows 7, Windows 8 or Windows 10
Network Interface
WinPcap 4.1.2 (included in installer)

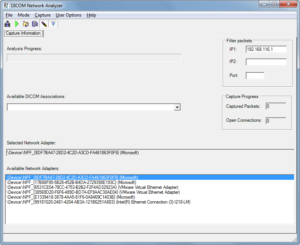

Main screen:

2017-05-23 14_54_53-DICOM Network Analyzer
